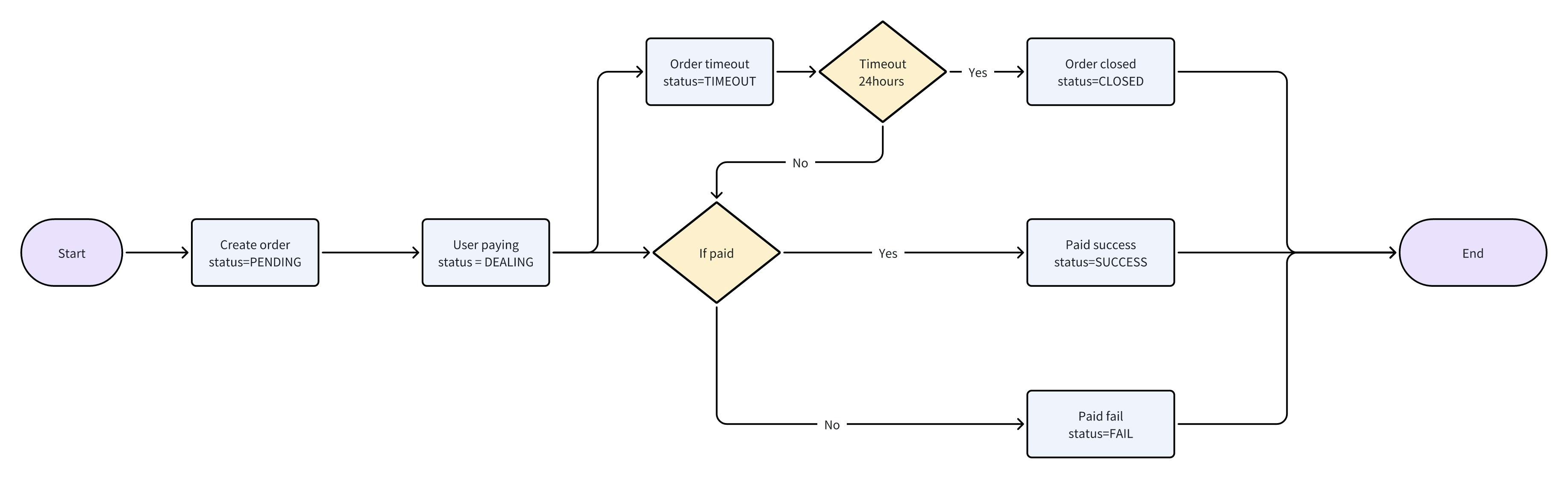

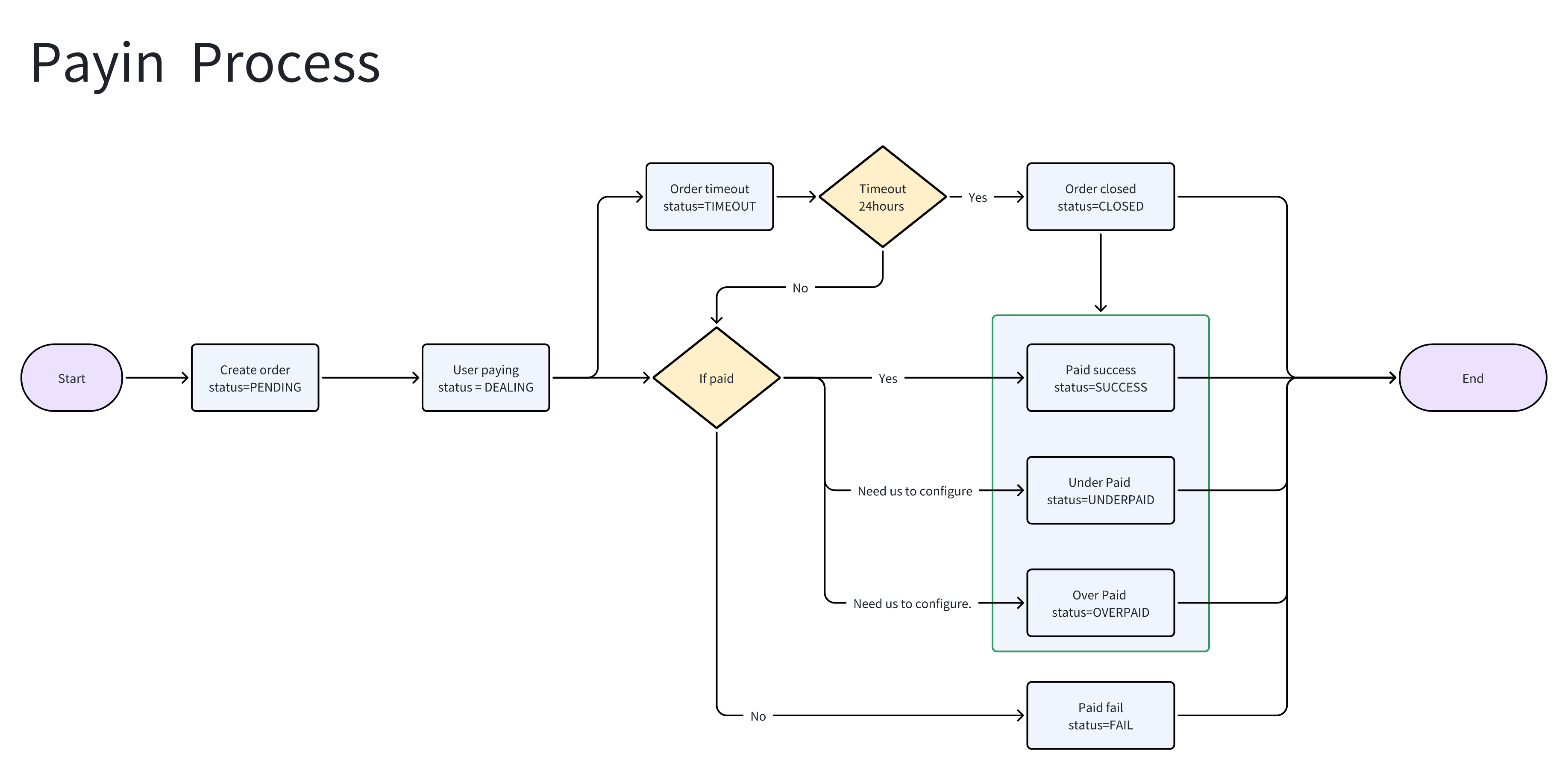

支付流程图
请求URL
https://gateway.pay247.io/gateway/payin/create
请求方式
- POST
请求参数
| 参数名 | 必选 | 类型 | 说明 |
|---|---|---|---|
| mch_id | 是 | string | 商户号 |
| mch_order_no | 是 | string | 商户自生成订单号 |
| mch_user_id | 是 | string | 商户用户的唯一标识（如果想隐藏用户id明文，可以使用md5加密传递） |
| currency | 是 | string | 支持【CNY,JPY,PHP,THB,SGD等 ，更多参考商户后台】 |
| amount | 是 | string | 99.11 单位元，支持到两位小数 |
| pay_method | 否 | string | 支付方式 ，如果为空，自动选择可用的支付方式 |
| pay_theme | 可选 | string | 1. link: 收银台模式（默认），2. custom: 自定义模式，会返回银行卡或者收款码信息，商户需自己封装 |
| client_ip | 是 | string | 下单用户的IP地址（一定要是用户的真实IP） |
| notify_url | 是 | string | 异步通知地址 |
| return_url | 否 | string | 同步跳转地址 |
| payer_id | 可选 | string | 【依据相关渠道】付款人身份证号 |
| payer_name | 可选 | string | 【依据相关渠道】付款人姓名 |
| payer_phone | 可选 | string | 【依据相关渠道】付款人手机号 |
| payer_email | 可选 | string | 【依据相关渠道】付款人邮箱 |
| payer_account_no | 可选 | string | 【依据相关渠道】 付款人银行卡号 |
| payer_bank_code | 可选 | string | 【依据相关渠道】 付款人银行代码 银行列表 |
| payer_bank_branch | 可选 | string | 【依据相关渠道】 付款人银行支行 |
| timestamp | 是 | string | unix秒级时间戳 |
| version | 是 | string | 接口版本: v3.0 |
| uuid | 是 | string | 请求ID: 550e8400-e29b-41d4-a716-446655440000 |
| sign | 是 | string | 签名token |
可选参数说明
| 币种 | 支付方式 | 必填 |
|---|---|---|
| 🇹🇭 THB | BANK | payer_name, payer_account_no, payer_bank_code |
| 🇯🇵 JPY | BANK | payer_name, payer_address |
请求参数示例
{
"mch_id": "Q0P5T8DOGN10000",
"mch_order_no": "TRADE-405189",
"mch_user_id": "U405189",
"currency": "CNY",
"amount": "99.11",
"pay_mehod": "GCASH",
"pay_theme": "link",
"notify_url": "https://x.com/notify",
"return_url": "https://x.com/return",
"timestamp": "1693233334134",
"version": "v3.0",
"client_ip": "8.8.8.8",
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"sign": "81930c5a04d1c58fd1efe33b06e2ffa7"
}
| 响应参数名(data) | 必选 | 类型 | 说明 |
|---|---|---|---|
| mch_id | 是 | string | 商户号 |
| mch_order_no | 是 | string | 商户订单号 |
| order_no | 是 | string | 系统订单号 |
| currency | 是 | string | CNY, THB, PHP |
| amount | 是 | string | 99.00 单位元，支持到两位小数 |
| pay_method | 是 | string | 银行名 |
| pay_theme | 是 | string | 账号 |
| status | 是 | string | 订单状态 |
| pay_url | 是 | string | 支付链接，获取后跳转 |
{
"code": 0,
"message": "success",
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"timestamp": "1693233334134",
"data": {
"mch_id": "MCH12345678",
"mch_order_no": "23082822325936693122",
"order_no": "MO202308282232593669984082",
"currency": "USD",
"amount": "59.12",
"pay_method": "BANK",
"pay_theme": "link",
"status": "PENDING",
"pay_url": "https://pay.xxx.com/link/DyDpCjDfkr"
}
}
{
"code": 0,
"message": "success",
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"timestamp": "1693233334134",
"data": {
"mch_id": "MCH12345678",
"mch_order_no": "23082822325936693122",
"order_no": "MO202308282232593669984082",
"currency": "USD",
"amount": "59.12",
"pay_method": "BANK",
"pay_theme": "custom",
"status": "PENDING",
"pay_params": {
"payee_name": "日本測試卡",
"payee_account_no": "123",
"payee_bank_name": "三菱UFJ銀行",
"payee_branch_name": "日本測試卡",
"qr": ""
}
}
}
示例-USDT 收款
- Request
{
"mch_id": "Q0P5T8DOGN10000",
"mch_order_no": "TRADE-405189",
"mch_user_id": "U405189",
"currency": "USDT",
"amount": "99.11",
"pay_mehod": "TRC20",
"notify_url": "https://x.com/notify",
"return_url": "https://x.com/return",
"timestamp": "1693233334134",
"version": "v3.0",
"client_ip": "8.8.8.8",
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"sign": "81930c5a04d1c58fd1efe33b06e2ffa7"
}
- Response
{
"code": 0,
"message": "success",
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"timestamp": "1693233334134",
"data": {
"mch_id": "MCH12345678",
"mch_order_no": "23082822325936693122",
"order_no": "MO202308282232593669984082",
"currency": "USDT",
"amount": "59.12",
"pay_method": "ERC20",
"status": "PENDING",
"pay_url": "https://pay.xxx.com/link/DyDpCjDfkr"
}
}
